Submission Details
0.997 fps
with
Extreme
Submitted
Rankings and Points
- World Record Rank
- 4732nd out of 5019
- 1 Core Global Rank
- 1 Core Xeon L3014 Rank
- 1 Core Team Power Rank
- 1 Core Xeon L3014 Team Power Rank
Images
Hardware Details
Processor
- Model
- Xeon L3014 Wolfdale-CL

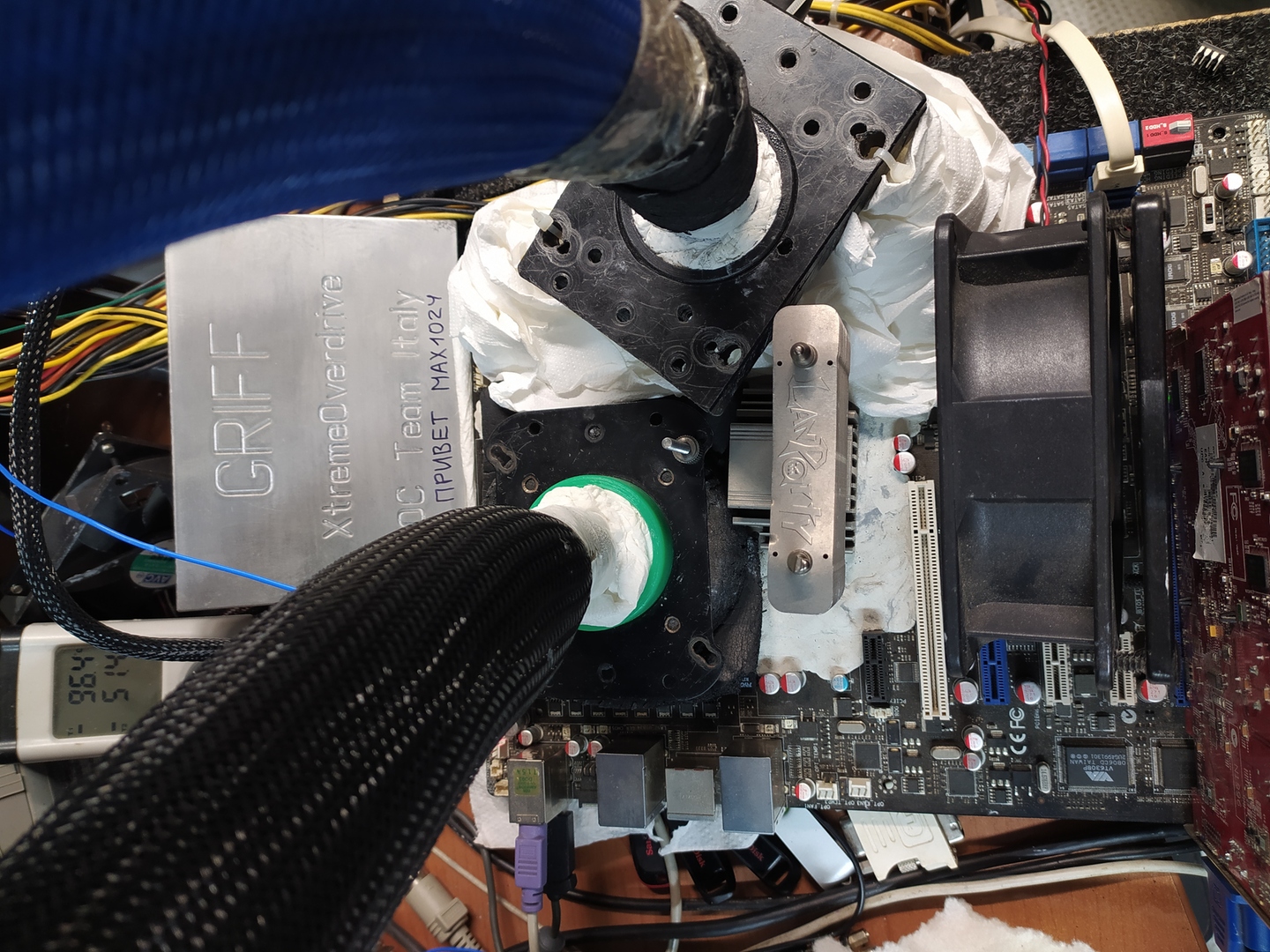

- Cooling
- Cascade Phase Change
- Cores
- 5,715.00 MHz (138%)

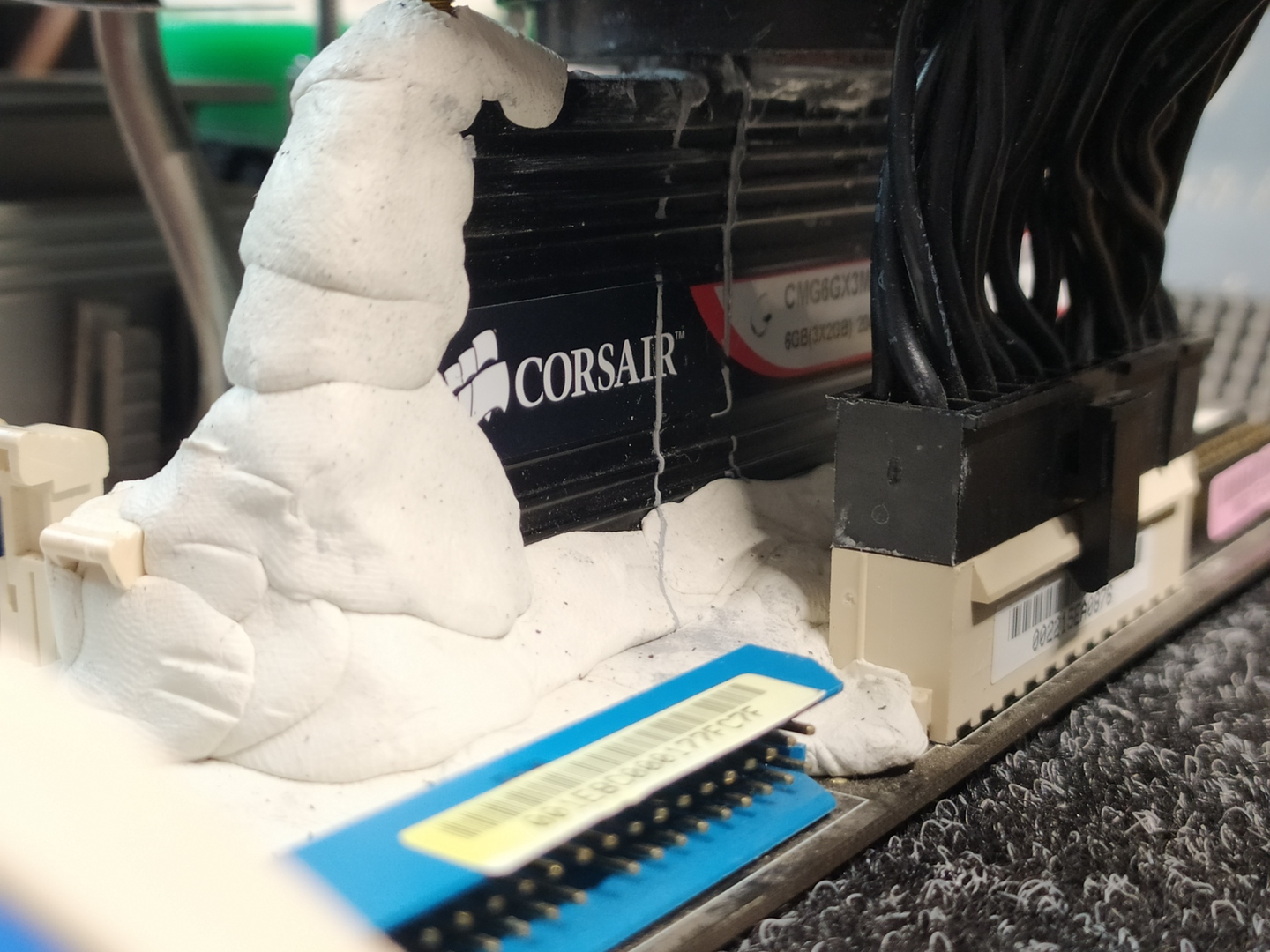

Memory
- Product
- Dominator GT
- Cooling
- Single Stage Phase Change
- Type
- 2 GB DDR3 SDRAM Speed @ 1,016 MHz
- Timings
- tCAS: 7.0 tRCD: 6 tRP: 6 tRAS: 18
Motherboard
- Model
- Rampage Extreme
- Cooling
- Air (Custom)
- Chipset
- X48
Comments
Nice score, so close to the 1FPS
https://community.hwbot.org/topic/202857-griff-xeon-l3014-5724mhz-4001-fps-hwbot-x265-benchmark-1080p/
I Need to solve issue with fsb Wall at 622 fsb with dual channel and 5:8 divider and 637fsb at single channel and 5:8 divider.
636*9 Is not limit for this CPU at cascade cooling)))))
Thank you guys.
See 1080p score for more details
do you have another SS for nb? could be enough to push you over the fsb walls...
The strange thing that with the same profile an E8500 reaches 656 of fsb in spi 32M with air cooled NB. The cpu on the GA-EP45-UD3P has validated 700mhz fsb with the ram in single channel. in dual channel instead the limit is 622 of fsb, exactly like on REX in dual channel and divider 5:8 with strap 333. I still have to try other straps and dividers. I started with this which was already tested on the E8500.
For ref griff how fsb is clock on air, mine seem to not like cold at all even with low or high pll
Not tested FSB on air cooling. When I finish doing the other benchmarks I do a test for you on the EP45-UD3P
Thanks ?
