Submission Details

Rankings and Points

Hardware Details

Processor

Model: Athlon XP-M 2500+ (Barton) Barton
Cooling: Air (Custom)
Cores: 1,735.00 MHz (-7%) REF 289.00 MHz
Batch: 0347 WPMW

Memory

Cooling: Air (Custom)
Type: 256 MB DDR SD-RAM Speed @ 194 MHz
Timings: tCAS: 3.0 tRCD: 4 tRP: 4 tRAS: 8
Batch: BT-D43

Videocard

Model: Radeon 9200/9250 (AGP 8x, 128bit) (RV280) (Radeon 9000 series)
Cooling: Air (Stock)
Speed: 240.00 MHz / 200.00 MHz

Motherboard

Model: A7N8X (rev2.0)
Cooling: Air (Custom)
Chipset: nForce2 Ultra 400

Comments

Tzk commented on own score:

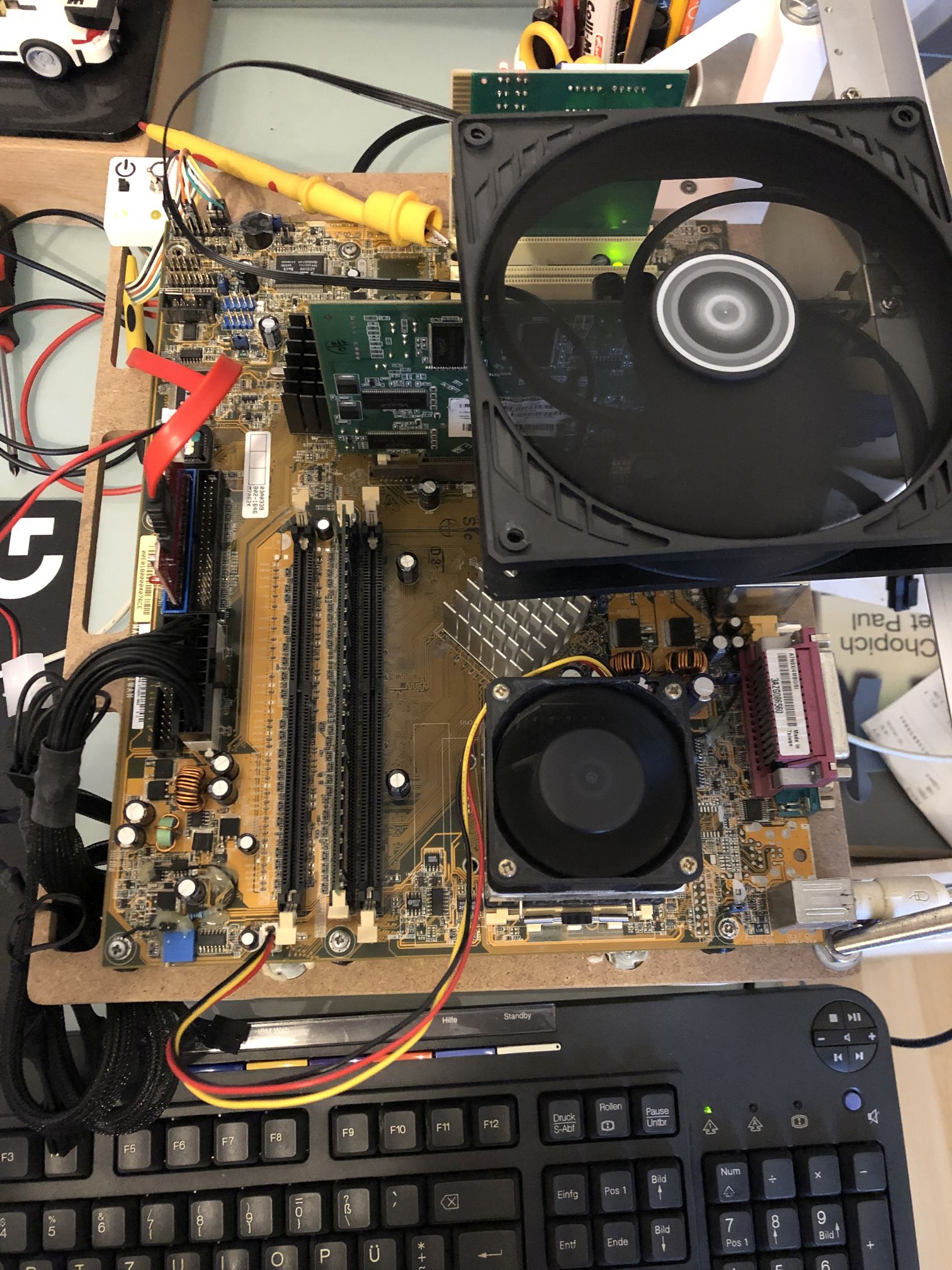

OEM "4MBO" Board SN 3AZG086560, 6:4 divider, ED55 romsips with custom #3 preset, Trc/Trfc 14/16, DS4 SR7, 6-6-6-6-3-6, Tref 1560, interface optimal, CPC On, 1.93V VDD, aircooling on NB, SB and CPU. 2500+ FQQ4C 0347 WPMW 1.675V, Hynix BT-D43 256mb 2.8V, bios digitalbath ED55 B2A. This is by far not stable. Board partially recapped, 12V rail mod, VDD Mod, VDimm mod

digitalbath December 3, 2021, 7:59:30 AM GMT

Awesome!

Tzk December 3, 2021, 8:12:44 AM GMT

Looks like you can push boards which are capable of 250MHz 32M to new heights, when you use the right settings and romsips ? Not sure the board has anything left in it, but this was literally the first (and only) try to achieve such a high fsb. I made use of the Auto Validation Bot which is implemented in the newest release of the (awesome!) nForce2XT tweaker made by @I.nfraR.ed. Great tool and such a timesaver when working my way up through the FSB range.

GRIFF December 4, 2021, 2:45:17 AM GMT

Great score man.

Mr.Scott December 4, 2021, 2:40:51 PM GMT

Fantastic!

dejan_bin_laden January 30, 2022, 4:36:46 PM GMT

hey man congrats on first place, where can i get this bios to try ?

Tzk April 23, 2022, 6:30:14 AM GMT

On 1/30/2022 at 5:36 PM, dejan_bin_laden said:

hey man congrats on first place, where can i get this bios to try ?

Sorry, haven't seen your reply till now.

This is a special bios i made myself, i'll attach it to this post. Note that it is made for the regular A7N8X Deluxe v2.0, but won't work on the -E Deluxe. I got a special OEM board which is basically a stripped Deluxe, but only has non-deluxe features (hence called "4MBO" on the sticker on the LPT port). Not sure this bios works on regular A7N8X v2.0, you might have to disable "speech output" in bios to get it to boot properly. If you want to try other romsips, take a look here:

https://biosbude.de/! BIOS VAULT/Asus/A7N8X Deluxe rev 2.0/digitalbath/

And if you got -E Deluxe, try one of the files ending in B2A from here. I'd try 619XT_B2A first:

https://biosbude.de/! BIOS VAULT/Asus/A7N8X-E Deluxe/digitalbath/

A7N8X_20_ED55_B2A.zip
