Submission Details

TAGG

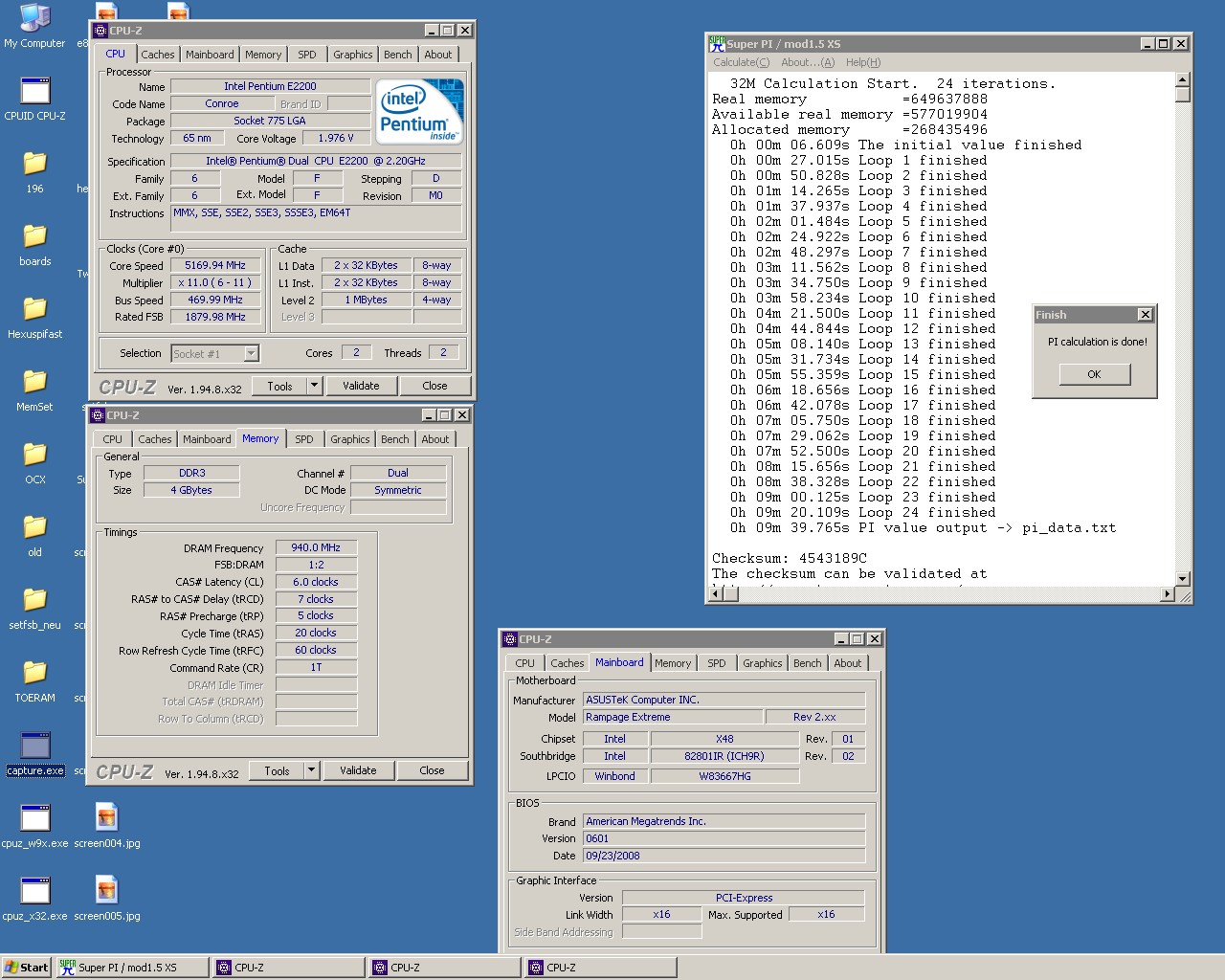

SuperPi - 32M Score

9 min 39 sec 765 ms with

Pentium E2200 @ 5169.00 MHz

Rankings and Points

Hardware Details

Processor

Model: Pentium E2200 Allendale-1M

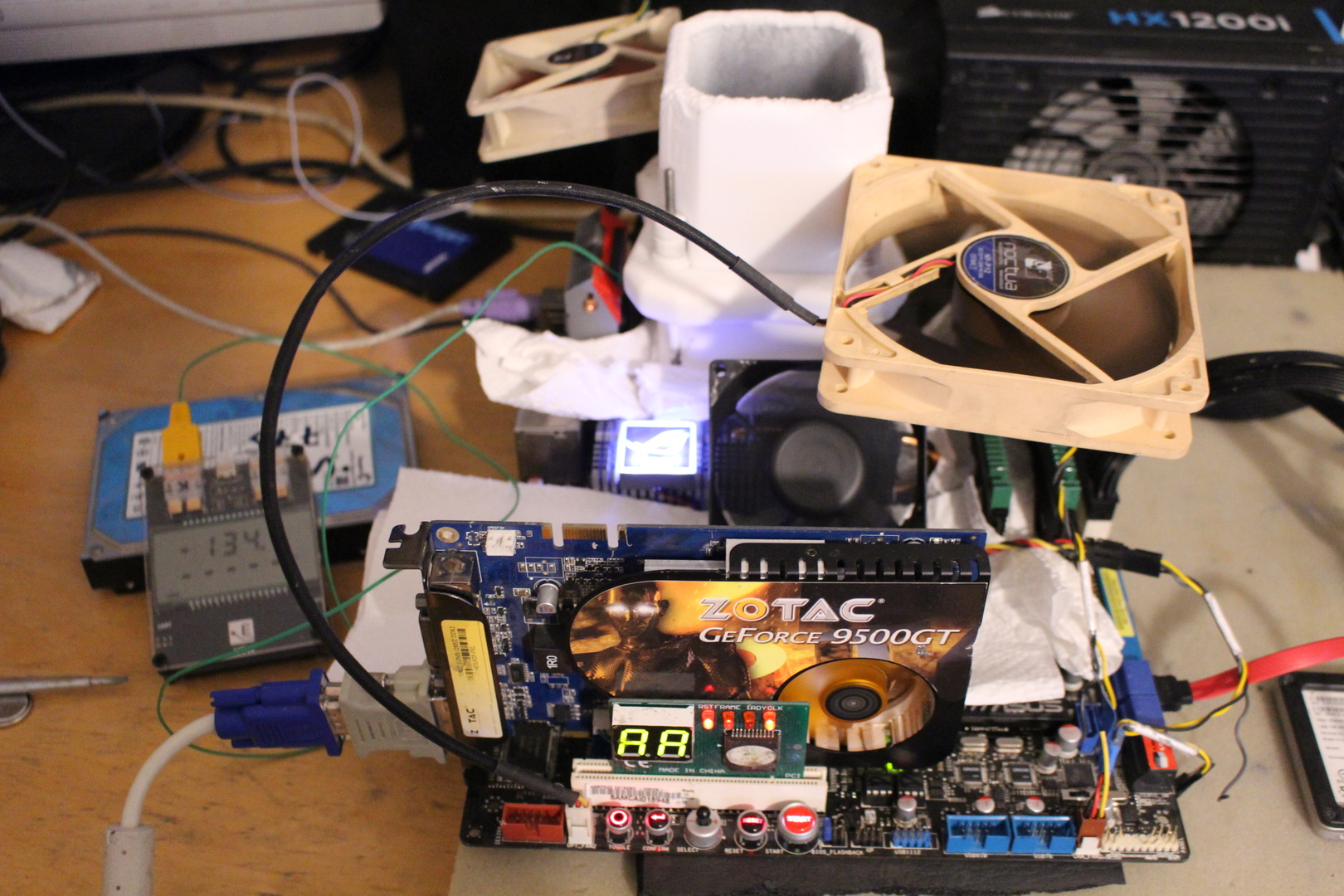

Cooling: Liquid Nitrogen
Cores: 5,169.00 MHz (134%)

Memory

Product: Dominator GT
Cooling: Air (Stock)
Type: 4 GB DDR3 SDRAM Speed @ 940 MHz
Timings: tCAS: 6.0 tRCD: 7 tRP: 5 tRAS: 20

Motherboard

Model: Rampage Extreme
Cooling: Air (Stock)
Chipset: X48

Comments

TAGG commented on own score:

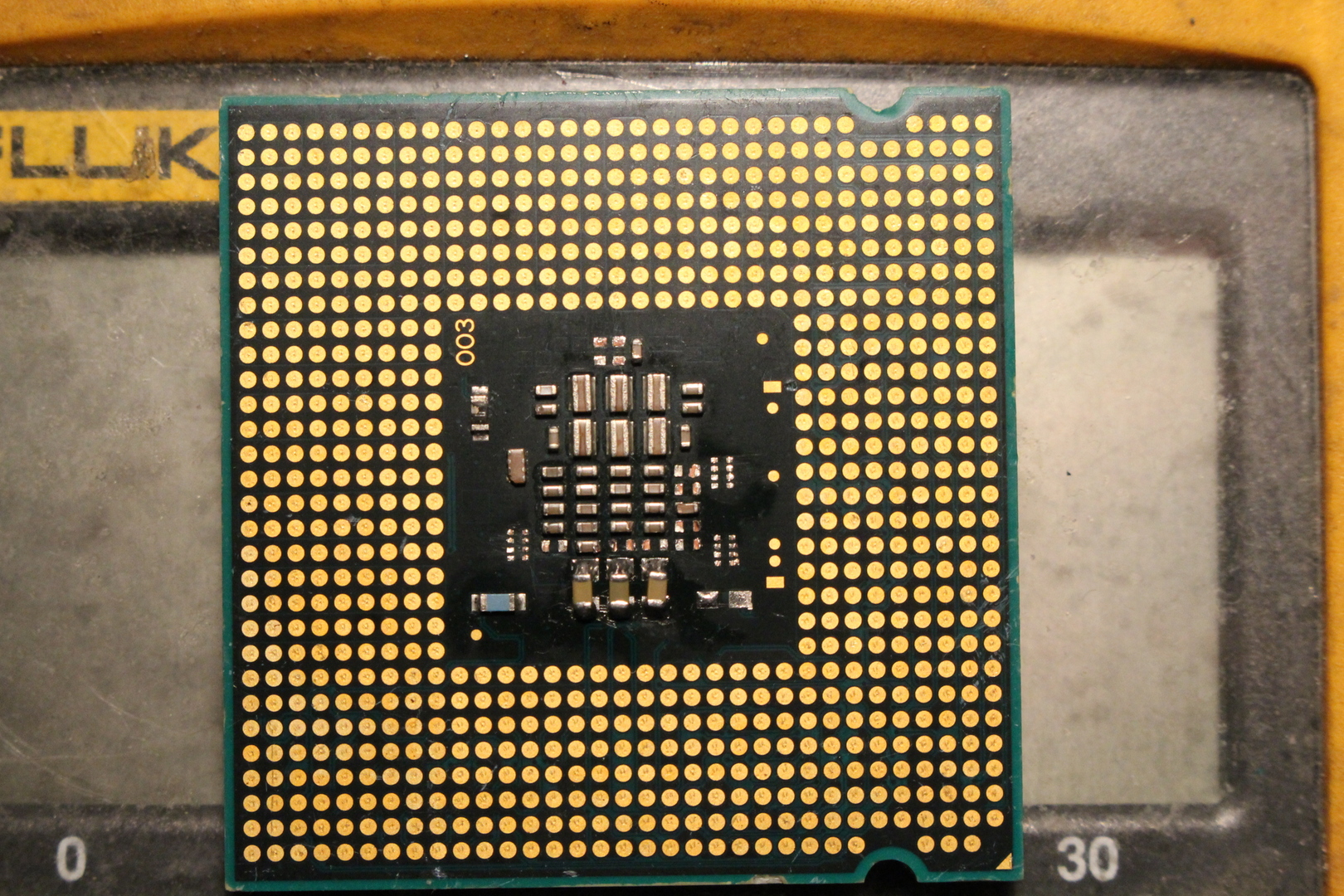

This chip was missing all of the big caps on the bottom, so i decided to add 3x 22uF and see what happens... Gained at least 60Mhz over previous run :)

kicsipapucs 20 Jul 2021, 22:35 UTC

Very significant jump in clock! Confirms my theory of the importance of the underside caps.

Avagreen 20 Jul 2021, 22:41 UTC

I'd been thinking about cap modding one of these as a fun dumb project, might give me a good reason lol. Finally got one that does pretty ok ambient FSB, core is ok as well.

TAGG 20 Jul 2021, 22:45 UTC

7 minutes ago, kicsipapucs said:

Very significant jump in clock! Confirms my theory of the importance of the underside caps.

Every cap helps

1 minute ago, davegreen said:

I'd been thinking about cap modding one of these as a fun dumb project, might give me a good reason lol. Finally got one that does pretty ok ambient FSB, core is ok as well.

Not sure i would cap mod these, but if you have a 775 chip that clocks well and is missing many caps adding some back seems to be a good idea
