Submission Details

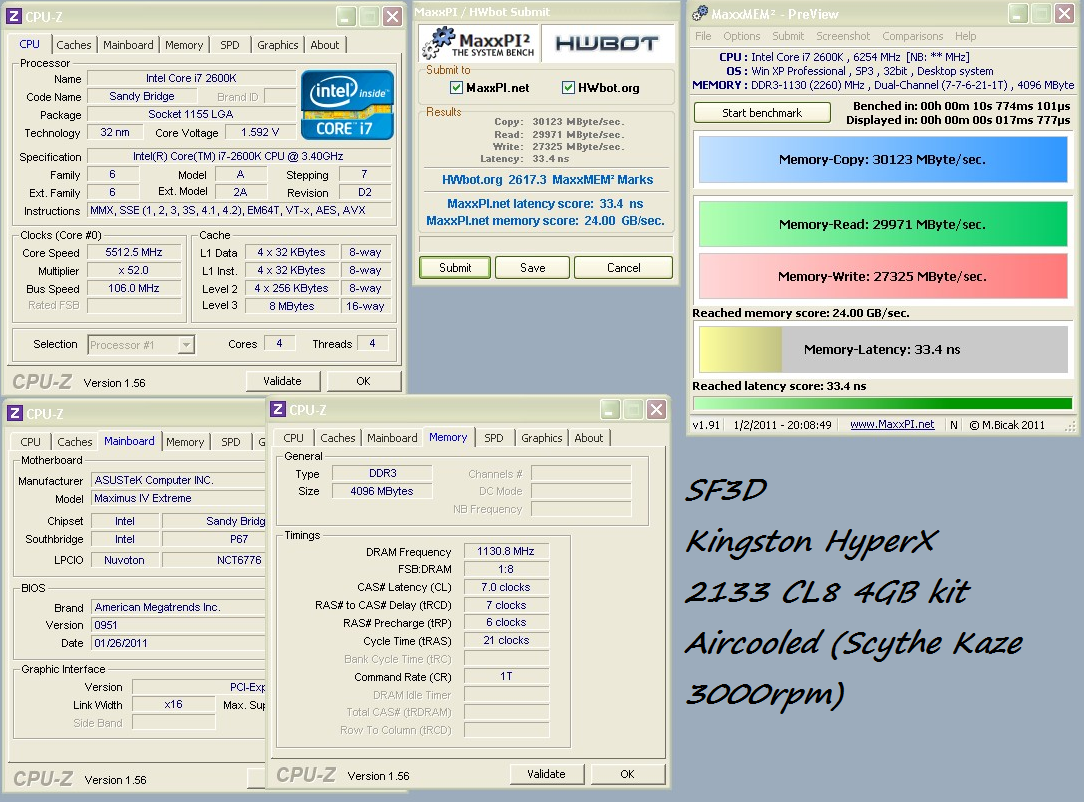

2617.3 marks with DDR3 SDRAM @ 1130.8 MHz
01 Feb 2011
elite League
13

Rankings and Points

World Record Rank
Not SF3D's Best MaxxMem Submission
Global Team Power Rank

Images

Hardware Details

Processor

Model Intel Core i7 2600K Sandy Bridge Cooling Water (Custom) Cores 5,512 MHz (+62.12%)

Memory

Product HyperX (classic) Cooling Air (Stock) Type 4096 MB DDR3 SDRAM Speed @ 1,131 MHz

Videocard

Model NVIDIA GeForce GTX 580 (GF110) Cooling Air (Stock) Speed 772 MHz (-.64%) / 1,000 MHz (-.20%) buy on amazon

Motherboard

Model ASUS Maximus IV Extreme Cooling Air (Stock) Chipset P67

Disk

n/a

Power Supply

n/a

Comments

SF3D commented on his own score:
14 year and 6 months ago – Kingston KHX2133C8D3T 1K2/4GX Aircooled Scythe Kaze 3000rpm 1.9V still BCLK + divider limited. ASUS did great job with this board!
February 1, 2011 at 8:36:37 PM UTC

Insane result! Good work Petri.

What would intel's engineers say about that voltage?;)

February 1, 2011 at 8:48:38 PM UTC

congrats petri, that's a sick result. :D

February 1, 2011 at 8:50:04 PM UTC

Are you sure it's not mem limited? (with 7-7-6 most hypers stop scaling around 1080-1100 and at 1120 they're already barely benchable, no matter the volts)

February 1, 2011 at 9:20:07 PM UTC

great job! what about the other voltages pll,vccio,vccsa etc...thanks

February 1, 2011 at 9:20:07 PM UTC

great job! what about the other voltages pll,vccio,vccsa etc...thanks

February 1, 2011 at 10:06:31 PM UTC

Sam- It is the cpu clocks which is limiting. I was already doing some higher freq runs, but with lower CPU speed. The score was worse + other issues. So I think with some new CPU I will try to show 1140Mhz+ runs for you ;)



Zoro- 1.9 VDDR, 1.25 VCCSA, 1.1 VCCIO, 1.8VCPUPLL, Skew + driving voltage changes. Subtimings tweaked a tiny bit.

February 1, 2011 at 10:55:42 PM UTC

It could be bios limited! are you sure about vccsa and vccio? i would expect them to be reverced! is the cpu alive? :P

February 2, 2011 at 7:53:39 AM UTC

Zoro- Yes, I am pretty sure that my eyes does not lie and my fingers set the correct values :) CPU is still in perfectly good condition.

February 2, 2011 at 7:56:30 AM UTC

Very nice result ... again! 30 GB/s finally done! :D



That is already a good cpu, I can tell you. Tested 5 until now and only one chip could do 108 BClock, but only with low cpu frequency. Higher frequencies on cpu and ram should need more VCCIO ... as much as the chip can take. Same as it was with Lynnfield.



Your voltages are really strange. Couldn't touch VCCSA on the UD7, because the whole system got unstable. VCCIO is very low for your memory frequency and timings. :)

February 2, 2011 at 5:33:40 PM UTC

Thanks _mat_!

I think MIVE is very good board and very easy to use. I don't know why UD7 behaves that way :)

February 2, 2011 at 7:05:54 PM UTC

1.9v vddr :o 2250+ 7-7-6 is awesome!

February 4, 2011 at 7:00:51 PM UTC

You must mean "only" 1.9V :)

February 7, 2011 at 10:43:40 PM UTC

wow i missed this one



well done dude this is a crazy OC. love it :D



where's ya superpi 32M mate :D
