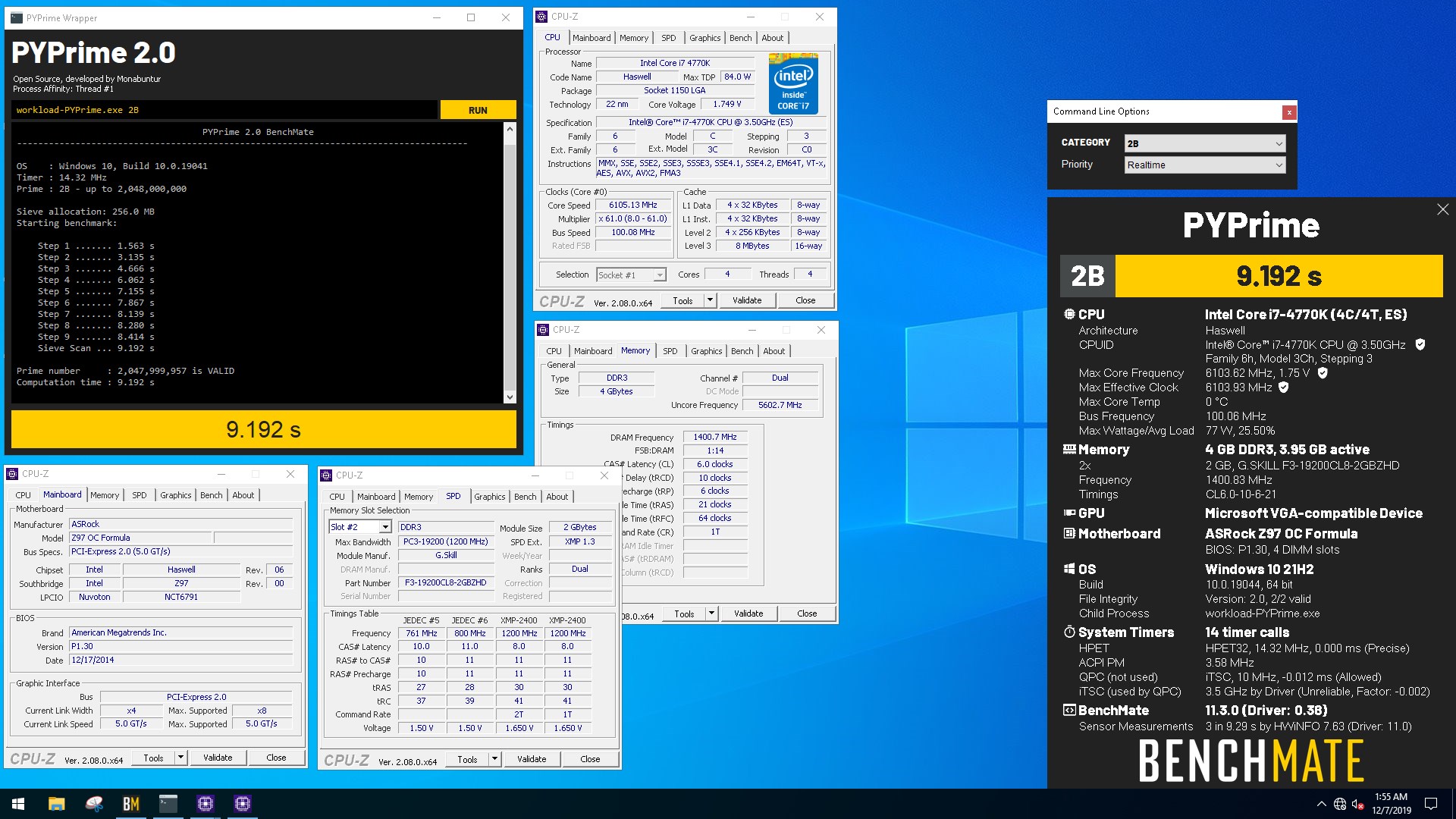

Submission Details

Elite Submitted

Media

Hardware Details

Processor

Model
Core i7 4770K Haswell-DT
Cooling
Liquid Nitrogen
Cores
6,103.62 MHz  (74%)

Memory

Product
G.Skill Ripjaws Z
Cooling
Liquid Nitrogen
Type
4 GB  G.Skill  DDR3 SDRAM Speed @ 1,401 MHz
Timings
tCAS: 6.0  tRCD: 10  tRP: 6  tRAS: 21

Motherboard

Cooling
Air (Stock)
Chipset
Z97

Disk

Type
NVMe
Series
P31 Gold (AHCI Controller)

Power Supply

Power
1600 Watt

Comments

l0ud_sil3nc3 commented on own score:
Asrock Z97 OCF + G.Skill 2400c8 RipZ
l0ud_sil3nc3
l0ud_sil3nc3
5 minutes ago, SparkysAdventure said:

ooooh, getting serious now

These modules are the first 2/4 from the quad 2400c8 RipZ kit and only needed 2.15v for 2800c6, see how the others do next.

SparkysAdventure
SparkysAdventure
9 hours ago, l0ud_sil3nc3 said:

These modules are the first 2/4 from the quad 2400c8 RipZ kit and only needed 2.15v for 2800c6, see how the others do next.

Did those sticks ever do 2800c6 SP32M? That's impressively low volt, likely has scaling to 2933+

Emil.SU
Emil.SU
Nice, it was getting boring on top. So what should be next 5775c with ln2 PSC or 7600k + whatever ram runs on shitty D3 mobo?
l0ud_sil3nc3
l0ud_sil3nc3
3 hours ago, SparkysAdventure said:

Did those sticks ever do 2800c6 SP32M? That's impressively low volt, likely has scaling to 2933+

These sticks never ran 2800 before but I remember they had a low boot voltage limit so even 2.20v failed to train. Setting 2.15v they trained super consistently at 2800 but failed to train 2933 and didn't spend much time trying higher after that.

3 hours ago, Emil.SU said:

Nice, it was getting boring on top. So what should be next 5775c with ln2 PSC or 7600k + whatever ram runs on shitty D3 mobo?

How about 7600K + LN2 PSC + D3 mobo 😎

8 minutes ago, TaPaKaH said:

What year is it?

The best years™️

phobosq
phobosq
Have you tried those sticks on air? What's the scaling when going from air to LN2 @2.1-ish volts? Curious to see what comes next, but 9 secs will fall sooner or later :D
l0ud_sil3nc3
l0ud_sil3nc3
21 hours ago, phobosq said:

Have you tried those sticks on air? What's the scaling when going from air to LN2 @2.1-ish volts? Curious to see what comes next, but 9 secs will fall sooner or later :D

Air these can run 2750c8 tuco tight at 1.92v > to 2800c6 tight on LN2 at 2.15v

The best PSC in my collection I believe is still the 2000c6 Pi but will find out soon ;)



phobosq
phobosq
On 5/16/2024 at 7:27 PM, l0ud_sil3nc3 said:

Air these can run 2750c8 tuco tight at 1.92v > to 2800c6 tight on LN2 at 2.15v

The best PSC in my collection I believe is still the 2000c6 Pi but will find out soon ;)



Thanks, much appreciated. It seems that I'd have to go through whatever leftovers I can get online, I checked a few kits for volts and found two capable of 2760 8-13-8 but at around 2.05 air, funny thing is I always thought PSC hard walls at 1.96 on air. That's still far from 1.92 :)

SparkysAdventure
SparkysAdventure
On 5/16/2024 at 12:27 PM, l0ud_sil3nc3 said:

Air these can run 2750c8 tuco tight at 1.92v > to 2800c6 tight on LN2 at 2.15v

The best PSC in my collection I believe is still the 2000c6 Pi but will find out soon ;)



Didn't your 2400c8 need <2v for 2600c7 as well? iirc this is a better indicator of tCL quality.

l0ud_sil3nc3
l0ud_sil3nc3
On 6/17/2024 at 8:16 AM, SparkysAdventure said:

Didn't your 2400c8 need <2v for 2600c7 as well? iirc this is a better indicator of tCL quality.

I think the only time I tried 2600 c7 twcl 7 was with my 2000 c7 Flares iirc and they needed 1.96v or so with a window unit blasting cold air on them.

SparkysAdventure
SparkysAdventure
On 6/30/2024 at 10:31 AM, l0ud_sil3nc3 said:

I think the only time I tried 2600 c7 twcl 7 was with my 2000 c7 Flares iirc and they needed 1.96v or so with a window unit blasting cold air on them.

Under normal ambient conditions, as in like 20-25°c without a window unit chilling them, this would be considered extremely strong. Like 2666 8-12-8 <1.8v strong.

My 2000c6 Pi + 2000c9 Ripjaws reference kit did 2600 7-12-7-26-76 tCWL 6 at around 2.08v, though they also did 2750 8-12-8-28-84 tCWL 6 around 1.92v. All at ~20°c ambient temps.

l0ud_sil3nc3
l0ud_sil3nc3
On 6/30/2024 at 12:51 PM, SparkysAdventure said:

Under normal ambient conditions, as in like 20-25°c without a window unit chilling them, this would be considered extremely strong. Like 2666 8-12-8 <1.8v strong.

My 2000c6 Pi + 2000c9 Ripjaws reference kit did 2600 7-12-7-26-76 tCWL 6 at around 2.08v, though they also did 2750 8-12-8-28-84 tCWL 6 around 1.92v. All at ~20°c ambient temps.

I remember those modules they were Allen's rejects he sent to Vince, crazy they have been around the world a few times now lol

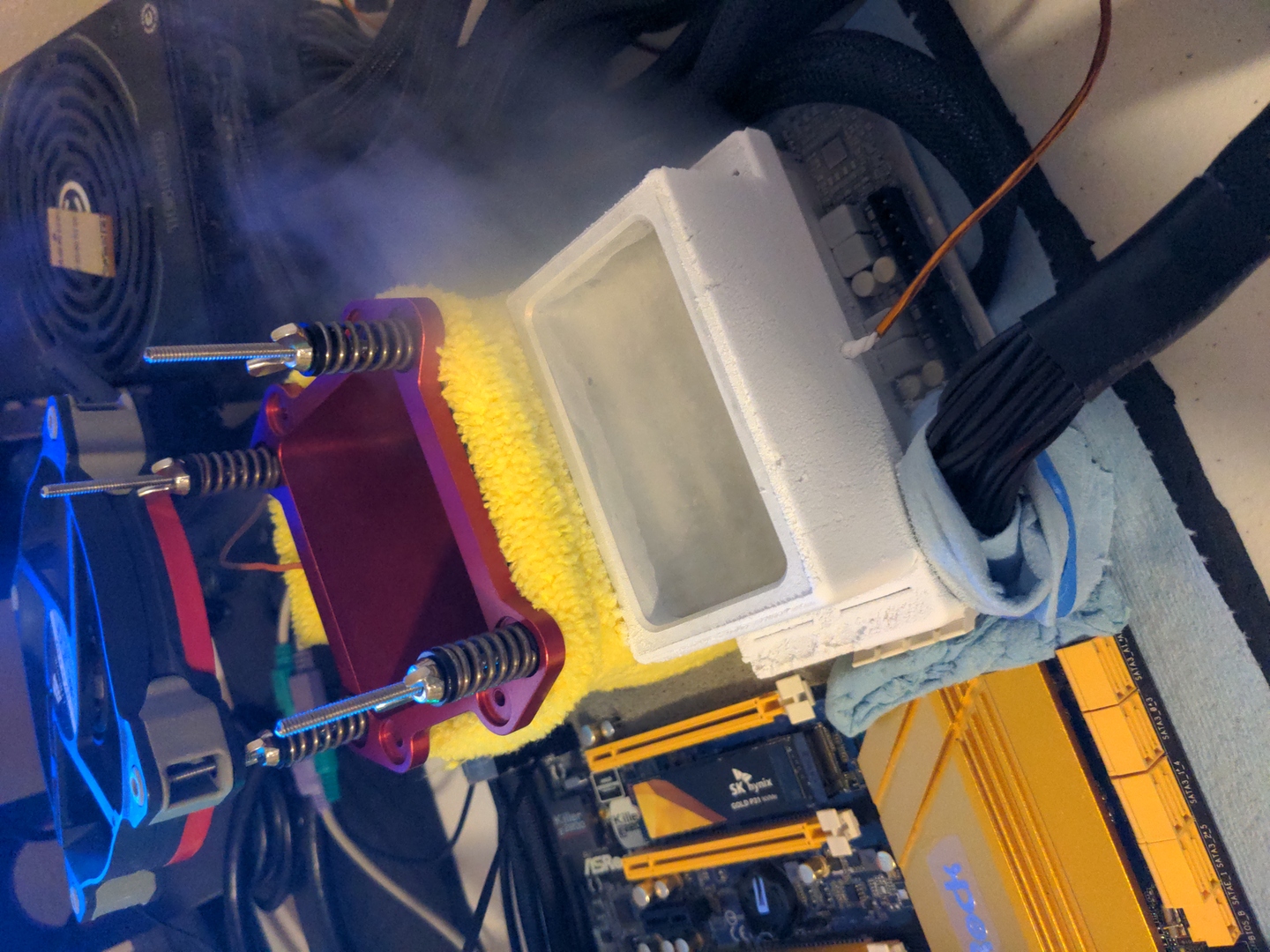

Juiced up today, found hardware to actually mount pot to heat spreaders and installed 2000c6 pi's see where they end up this weekend 🤞



SparkysAdventure
SparkysAdventure
1 hour ago, l0ud_sil3nc3 said:

I remember those modules they were Allen's rejects he sent to Vince, crazy they have been around the world a few times now lol

Juiced up today, found hardware to actually mount pot to heat spreaders and installed 2000c6 pi's see where they end up this weekend 🤞

some rejects they are lmao, I guess they never fully got tested properly

If you want to try these on cold, I'm happy to send them over. I think they might be decent candidates for 2800 6-9-6, considering high tRCD limit and pretty good scaling.
