Submission Details

Moonman

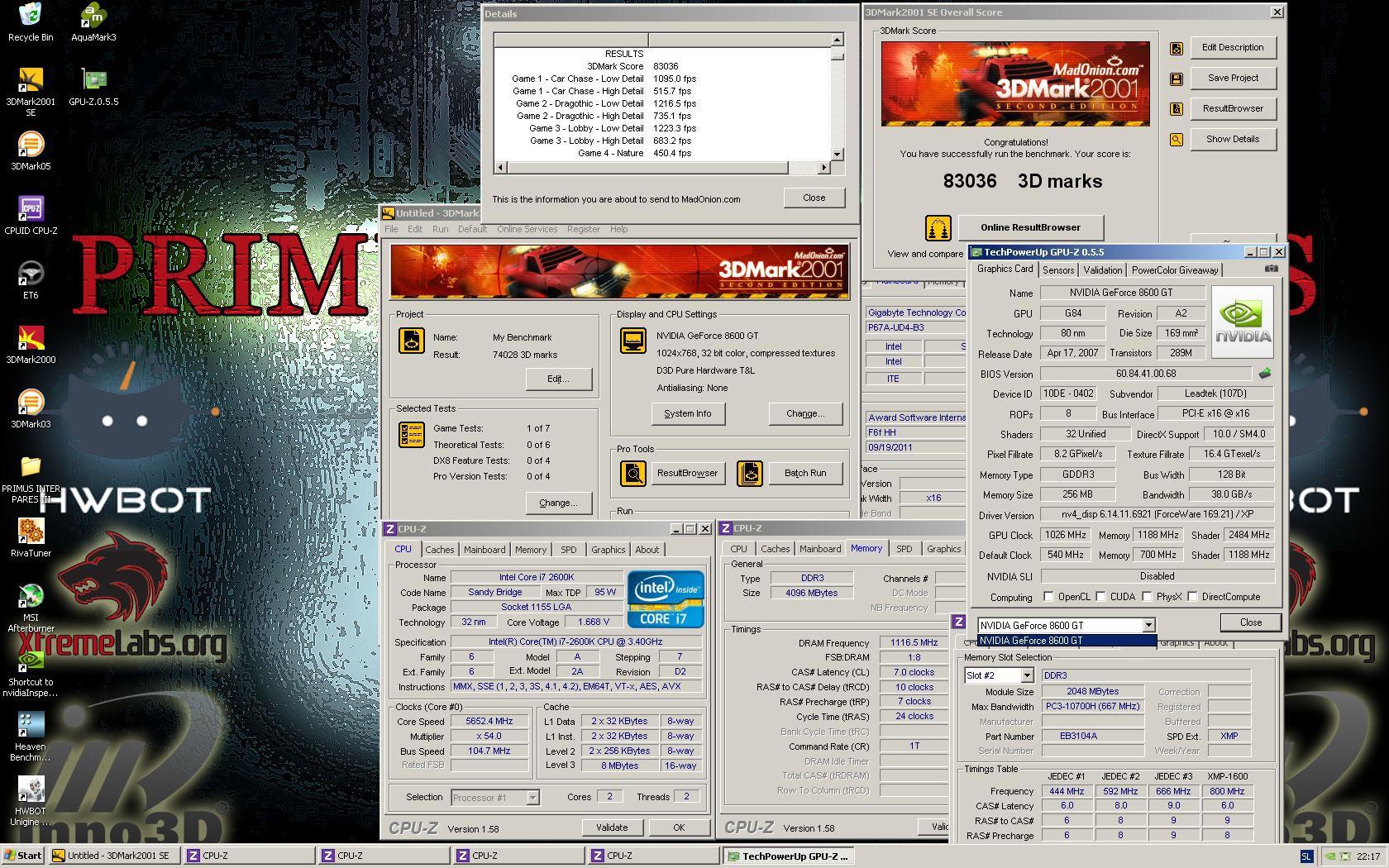

3DMark2001 SE Score

83036 marks with

GeForce 8600 GT 256MB GDDR3 @ 1026.00/1188 MHz

application.subtest.3dmark01.game1 - 1095

application.subtest.3dmark01.game2 - 515.7

application.subtest.3dmark01.game3 - 1216.5

application.subtest.3dmark01.game4 - 735.1

application.subtest.3dmark01.game5 - 1223.3

application.subtest.3dmark01.game6 - 683.2

application.subtest.3dmark01.game7 - 450.4

Extreme Submitted 25 Sep 2011 XtremeLabs.org Primus Inter Pares III - 3DMark01

Hall of Fame

Rankings

Rankings and Points

World Record Rank: Not Moonman's Best WR Submission
1 Core Global Rank: Not Moonman's Best GL Submission
1 Core GeForce 8600 GT 256MB GDDR3 Rank: 6th out of 290 48.0 Points

1 Core Team Power Rank: Not OC-Lab.si's Best GL Submission
1 Core GeForce 8600 GT 256MB GDDR3 Team Power Rank: 6th 32.7 Points

Images

Hardware Details

Processor

Model: Core i7 2600K Sandy Bridge
Cooling: Single Stage Phase Change
Cores: 5,652.00 MHz (66%)

Memory

Cooling: Air (Stock)
Type: DDR3 SDRAM Speed @ 1,116 MHz

Videocard

Model: GeForce 8600 GT 256MB GDDR3 (G84) (GeForce 8 series)
Cooling: Cascade Phase Change
Temperature: Load -70 °C Idle -71 °C
Speed: 1,026.00 MHz (90%) / 1,188.00 MHz (69%)

Motherboard

Model: GA-P67A-UD4-B3
Cooling: Air (Stock)
Chipset: P67

Comments

Moonman commented on own score:

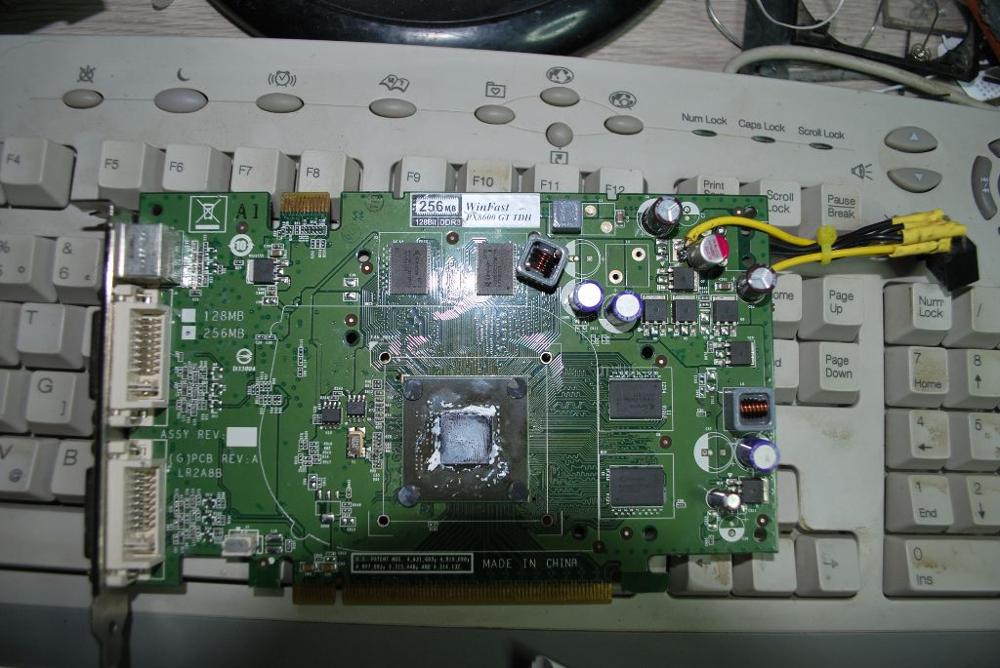

Result made with original vrm and mods: -vgpu mod -vmem mod -direct +12V supply from PCE-E connector -raised OCP limit by factor 2.2 -tight memory timings - Qimonda 1.4ns rocks xD -raised core temp. threshold fets were already burning so no sense for additional vrm switching frequency mod Cards vrm blew up (and took GPU with it) when pushing 2k1, in 40th second of nature. Final score should be ~83.7k. "Zombie" works, can't wait to try it out on another card. Thx to TiN for ins...
